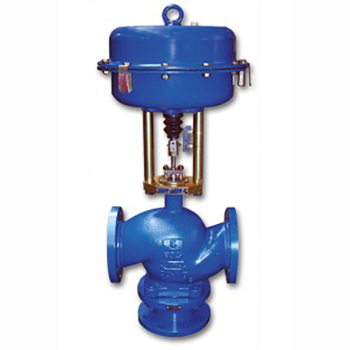

Three-way valve BR13
The three-way control valve BR 13 is used to mix (BR 13 m) or divide (BR 13R) media flow. It can be widely used in industrial fields

characteristic:
Common sizes: DN15; 20; 25; 32; 40; 50; 65; 80; 100; 150 (>DN 150 after technical confirmation)
Common pressure: PN10 - PN40 or ANSI CL150 - CL300
Leakage rating: (based on DIN EN 60534-4): IV (< 0.01% Kvs) VI (foam tight)
The total length is based on: DIN EN 60534-3-1 or ANSI B16.10
Temperature range: -196°C – +450°C
Flange or welded end configuration, TA air is smooth, the feasibility of bellows connection
Can be used as a mixing valve (BR13M) or a diverter valve (BR13R)

SIL-certification
