Air Preparation - Numatics In Line Filters
In-Line Filters - High Efficiency Miniature Filtration Products

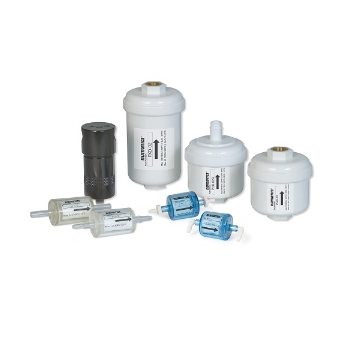

Numatics disposable in-line filters include the PL Series polyurethane straight and nylon dual barbed styles as well as the PT Series nylon straight and 90 degree barbed styles. Both offer coalescing and particulate element grades. Our PH and PX Series extended polyester housings offer particulate as well as HEPA and ULPA elements grades. The PH Series also offers a clear polycarbonate desicant dryer option utilizing blue silica gel. The all metal MF Series also offers both coalescing and particulate element grades.

Numatics Disposable In-Line Filters Standard Products Include:

1）PLT Series Straight ¼ “ Style
2）PLB Series Dual Barb for ⅛ or ¼ “ Tubing
3）PTB Series Straight for ⅛ “ Tubing
4）PTBN Series 90 Degree for ⅛ “ Tubing
5）PH02 Series High Flow Housing¼ NPTF
6）PH02B Series High Flow Housing ½” Barb (Outlet Only)
7）PX02 Series Extended Housing ¼ NPTF
8）PHS02 Series Desicant High Flow Housing ¼ NPTF
9）MF05 Series Metal Housing ¼ NPTF
Numatics Disposable In-Line Filters Options & Features Include:

1）PL Series Coalescing Element Grades 0.01, 0,3, 0.5, 1.0 Micron
2）PL Series Particulate Grade 5.0 Micron, Carbon & Silica Gel
3）PT Series Coalescing Element Grades 0.01, 0,3, 0.5, 1.0 Micron
4）PT Series Particulate Grade 5.0 Micron
5）PL & PT Series Options for Oil Indicating Dye & PTFE Binder
6）PH & PX Series Particulate Grade 3.0 Micron Pleat
7）PH & PX Series HEPA High Efficiency & ULPA Ultra Low Particulate Air
8）PHS & PHX Series Dryers Integral 3.0 Micron Pre & After Filters
9）PHS & PHX Series Blue Silica Gel turns pinks indicating replacement
